3A UPS 5V 6V 9V 12V 15V 24V 15W 3.7V 4.2V Battery Charge and Discharge

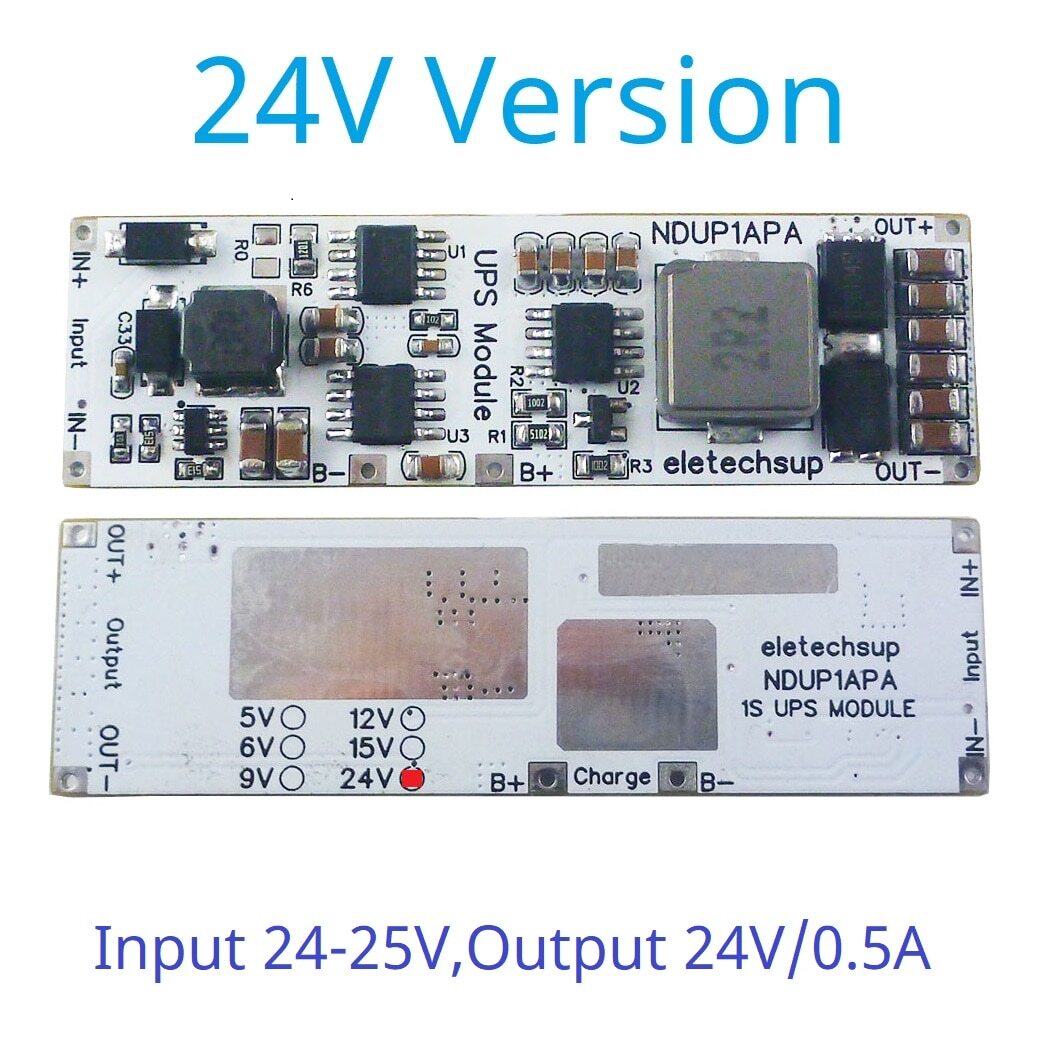

Product Name : 3A 5V 6V 9V 12V 15V 24V UPS Module 15W 3.7V 4.2V Li-on Li-po Lithium Battery Charge and Discharge Board for WIFI Network Router Packing list: 1PCS NDUP1APA 15W 2 in 1 3.7V Charge and 5-25V Boost UPS Module Description: 2 in 1 Charge and Discharger(Boost) UPS modules Input voltage : DC 5V/6V/9V/12V/15V/24V Output voltage : Equal to the input voltage (Because the input and output ends are isolated by Schottky diodes, there is a voltage difference of 0.2-0.6V) Output Power : 15W Full charge Voltage : 4.20V(+-1%) Power off switching time: 10MS Operating ambient temperature : -40° to +85° Storage temperature : -65° to +125° Size: 60*18*6MM(Suitable for 18650 battery) Weight :8g The maximum allowed load power is 15W. The parameters of each version are as follows: 5V Version : Input 5-5.5V,Output 5V/3A 6V Version : Input 6-6.5V,Output 6V/2.6A 9V Version : Input 9-10V,Output 9V/1.7A 12V Version : Input 12-13V,Output 12V/1.3A 15V Version : Input 15-16V,Output 15V/1A 24V Version : Input 24-25V,Output 24V/0.5A Working Principle: 1 Input port input voltage, output port output voltage (Vout=Vin-0.2~0.6V) 2 If the battery is not fully charged, recharge the battery. 3 If the input port voltage disappears, the battery is discharged, and the voltage is boosted and output from the output port. Applications: WIFI router network equipment uninterrupted power supply Uninterrupted power supply for industrial equipment such as PLC/HMI/industrial control host Battery powered equipment LI-ON LI-PO Lithium Battery 18650 14500 UPS power supply equipment diy Solar charging Electronic diy kit Pin Description: IN+ :Power Input Positive IN- :Power Input Negative B+ :Battery Charging Positive B- :Battery Charging Negative OUT+:Load Output Positive OUT- :Load Output Negative
